How Does the Keystone Correction Work in Projectors?

How Does the Keystone Correction Work in Projectors?

One of the issues that people look out for with projectors is the keystone effect. This is the distortion of an image that occurs when it is projected onto an angled surface.

When this happens, the image dimensions are distorted, so a square shape might be changed to a trapezoid shape. This type of distortion is directly related to the angle of the projector to the screen as well as the angle of the beam.

Early projectors relied on people to find the right location and placement for the projector to avoid this problem. They were fixed in place, and people could move screens or other objects to correct the keystone problem.

However, today projectors are light and portable, and people expect a simpler solution. Continue reading to learn about keystone correction in projectors.

What Is Electronic Keystone Correction?

Keystone Correction Explained! | Projector 2 Min Tips

There are two different types of keystone correction for projectors: manual correction and digital correction

You use manual keystone correction when you modify the position of the projector lens. You can mount the projection from the ceiling or on a wall and adjust if by hand to make sure that you have the right angle to produce a rectangular image on the screen.

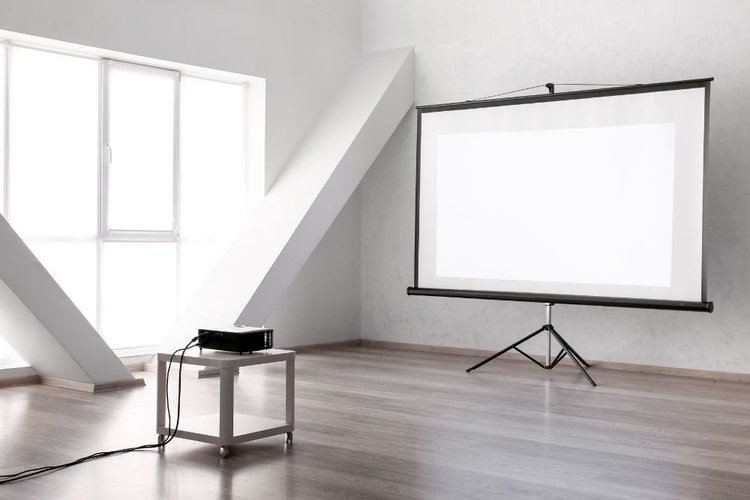

The keystone effect is caused by the placement of the projector and the angle of the beam, and you can adjust the location and angle of the projector to fix it.

Although this works in a number of situations, it will hardly correct horizontal keystoning. It is important to install your projector at the right distance from the screen to make sure that the image is squared up both vertically and horizontally.

A proper setup for your projector and screen will help you more than using the keystone correction feature

A proper setup for your projector and screen is better than using the keystone correction.

Another type of keystone correction is digital. LCD and DLP projectors contain this type of digital keystone correction, and it is automatic.

When you send data to the projector from an input device, it can be converted and scaled automatically to correct for the keystone effect.

This occurs when the projector has a selectable algorithm added to the scaling, and it can alter the image before it reaches the projector lens. As a result, the image is squared, even if it is shown at an angle.

Digital keystone correction helps to ensure that you have a square image on the screen, even if the projector is placed at an angle.

Different projectors have differing degrees of keystone correction. While some projectors can offer only around 12 degrees of vertical keystone correction, others can give you as much as 35 degrees.

Some projectors also offer horizontal keystone correction. When you have keystone correction built into the projector, it helps to ensure that your projected image will be squared to align with your screen.

Although keystone correction may reduce the quality of your image, it will ensure that your image fits on the screen, which is less of a distraction. The key is to minimize the necessary of angle correction by making sure that you put time into the placement of your projector.

Is Keystone Correction Necessary?

Keystone correction helps to ensure that your projected image fits on the screen, which gives you the flexibility to place the projector at a slight angle if necessary. If you are looking for a better quality image that fits on the screen, you will want to have keystone correction.

The benefit of having keystone correction is that your image will be adjusted to fit the screen. However, it reduces the overall quality of the images, so there is a trade-off.

The reality is that anyone who has a projector will deal with the keystone effect on some level, and the true solution is to perfectly align your projector at the correct angle for an image that fits the screen.

It is not always convenient to place your projector in the center of the room at the perfect angle, but it is the best way to reduce the keystone effect.

Does the Keystone Correction Affect Picture Quality?

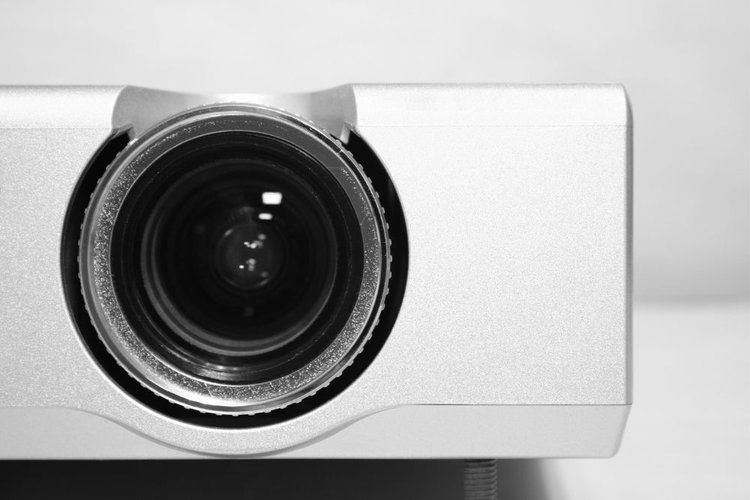

image quality

When you use keystone correction to produce an image that is aligned with the screen, there is a trade-off in terms of picture quality. As you increase the angle of correction, the resolution of your images will be reduced.

The digital process of keystone correction manipulates the image to correct it, which results in distortion. However, manual keystone correction done by adjusting the position and location of your projector will not interfere with your image.

That said, having the ability to correct keystone with one click of a button makes a huge difference in terms of convenience. If you need only minor adjustments, you may not notice the reduction in image quality.

The important thing is to start by setting your projector up in the best possible location to produce a clear image that is free of distortion. Use your keystone correction for minimal changes.

The angle of keystone correction is very important in determining the quality of the images you see on the screen. And the way to get the best possible image is to have your projector in a good location and that your projector has some form of keystone correction.

Although keystone correction reduces the quality of your projected image, it produces a less distracting image that has the image spill off the screen. The key is to minimize the necessary angle of correction by making sure that you put time into the placement of your projector.

Final Words

If you have a projector, it is important to understand keystone correction. The keystone effect is a possibility with any projector, and you will want to minimize it.

The keystone effect is simply the distortion that occurs when the projector is at anything other than a 90-degree angle. It can happen both vertically and horizontally.

You can adjust the placement of your projector to minimize the keystone effect, but you will want to have digital keystone correction as a one-click option for your projector. This way, you can enjoy an image that is directly on the screen.

The more you need to adjust the angle of projection, the more your image quality is reduced. Although keystone correction can correct larger angles, you will trade image quality.

You should look for a projector that has keystone correction as a feature, but if you want the best quality image on your screen, you need to pay attention to where you install your projector.
